Distribution Box / Enclosure

  • TSM-F-W IP40 White Cover Flush Plastic DB Enclosure
  • TSM-F-W IP40 White Cover Flush Plastic DB Enclosure
  • TSM-F-W IP40 White Cover Flush Plastic DB Enclosure
  • TSM-F-W IP40 White Cover Flush Plastic DB Enclosure
  • TSM-F-W IP40 White Cover Flush Plastic DB Enclosure
  • TSM-F-W IP40 White Cover Flush Plastic DB Enclosure
  • TSM-F-W IP40 White Cover Flush Plastic DB Enclosure
TSM-F-W IP40 White Cover Flush Plastic DB Enclosure TSM-F-W IP40 White Cover Flush Plastic DB Enclosure TSM-F-W IP40 White Cover Flush Plastic DB Enclosure TSM-F-W IP40 White Cover Flush Plastic DB Enclosure TSM-F-W IP40 White Cover Flush Plastic DB Enclosure TSM-F-W IP40 White Cover Flush Plastic DB Enclosure TSM-F-W IP40 White Cover Flush Plastic DB Enclosure

TSM-F-W IP40 White Cover Flush Plastic DB Enclosure

Key information
Rated voltage / rated frequency: 690V/50Hz
Material: Cover - PC
               Body - ABS
Color: White
Tested and approved to IEC/EN 60947-1
CE certificated
Din rail connection according to IEC/EN 50022
Supplied with removable earth / neutral bar

Technical Specification

Specification

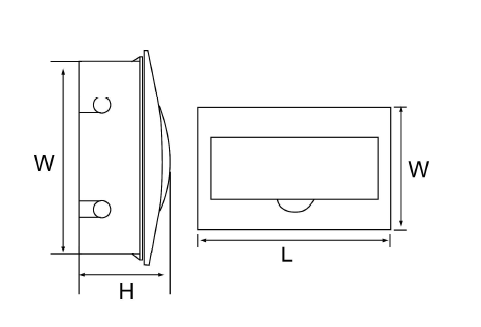

Dimension (L×W×H)

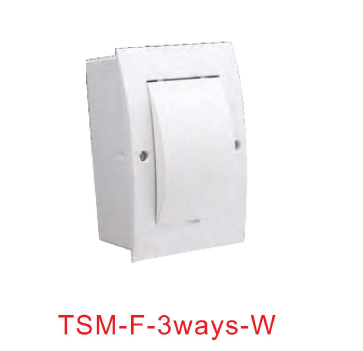

TSM-F-W-3ways

95×150×60

TSM-F-W-4ways

136×221×90

TSM-F-W-6ways

172×221×90

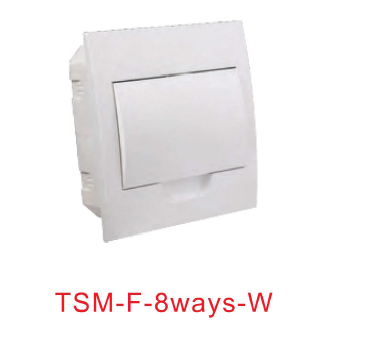

TSM-F-W-8ways

208×221×90

TSM-F-W-10ways

246×221×90

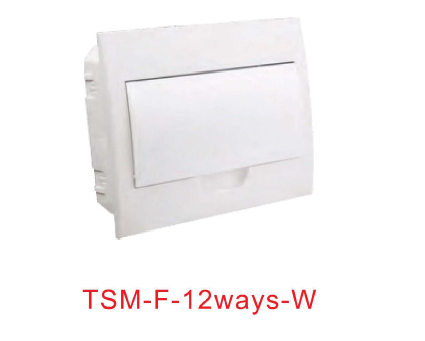

TSM-F-W-12ways

278×221×90


TSM-F-W-15ways

334×221×90


TSM-F-W-18ways

398×251×100

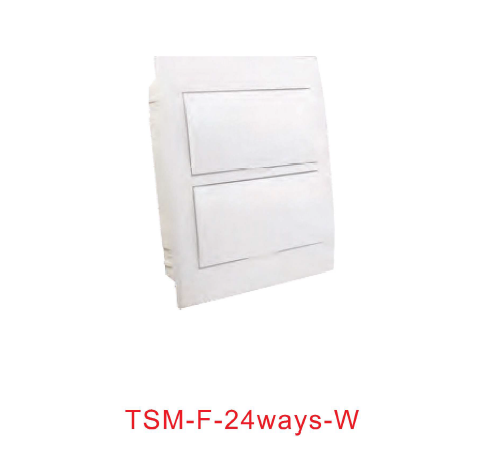

TSM-F-W-24ways

300×350×100

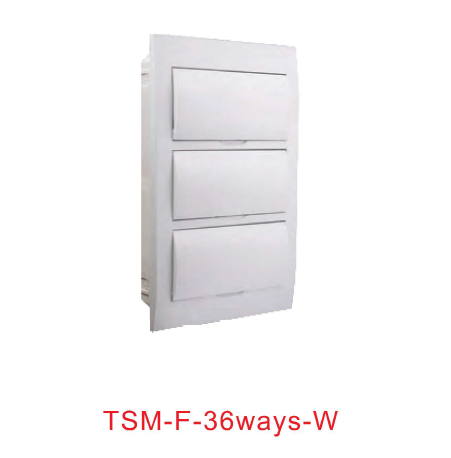

TSM-F-W-36ways

300×482×100

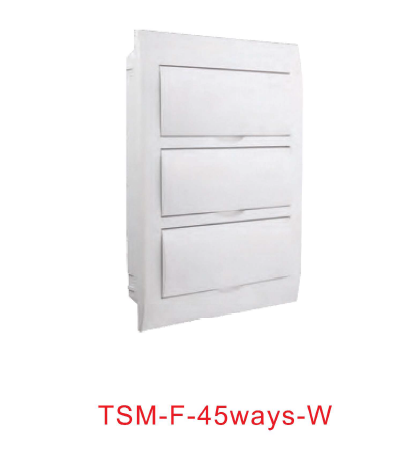

TSM-F-W-45ways

365×505×110
