Distribution Box / Enclosure
TSM-S-W IP40 White Surface Plastic Distribution Box
Key information
Rated voltage / rated frequency: 690V/50Hz
Material: Cover - PC
Body - ABS
Color: White
Tested and approved to IEC/EN 60947-1
CE certificated
Din rail connection according to IEC/EN 50022
Supplied with removable earth / neutral bar
Technical Specification

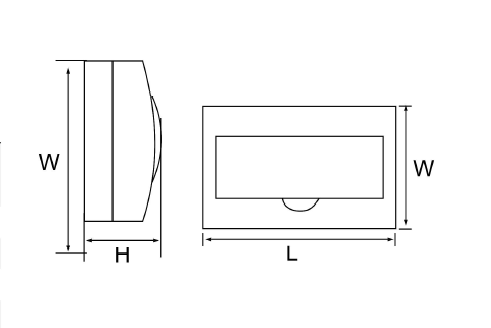

Specification | Dimension (L×W×H) |
TSM-S-W-3ways | 95×150×60 |

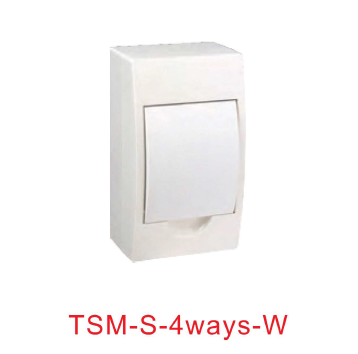

TSM-S-W-4ways | 112×200×95 |
TSM-S-W-6ways | 148×200×95 |

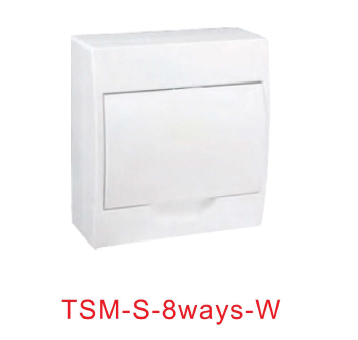

TSM-S-W-8ways | 184×200×95 |
TSM-S-W-10ways | 222×200×95 |

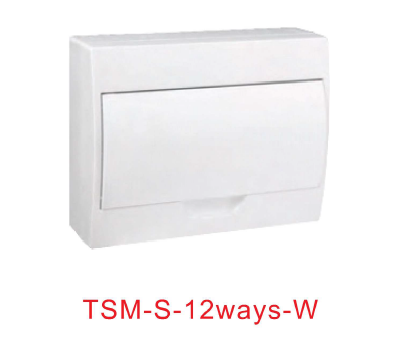

TSM-S-W-12ways | 256×200×95 |

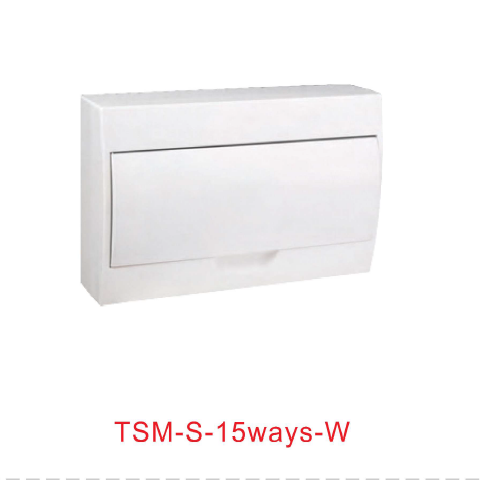

TSM-S-W-15ways | 312×200×95 |
TSM-S-W-18ways | 360×200×100 |

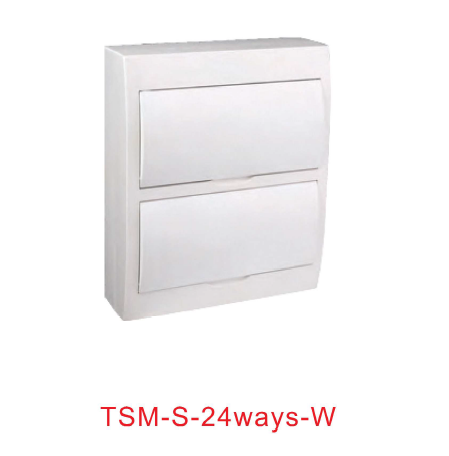

TSM-S-W-24ways | 270×328×100 |
TSM-S-W-36ways | 270×460×100 |

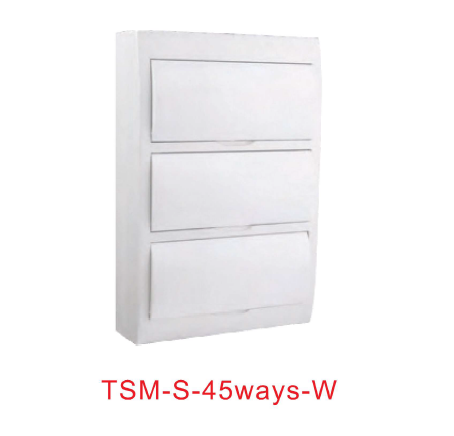

TSM-S-W-45ways | 325×470×100 |
